Quick Details
Place of Origin: China (Mainland)
Brand Name: JOINT-MAG
Model Number: OEM.

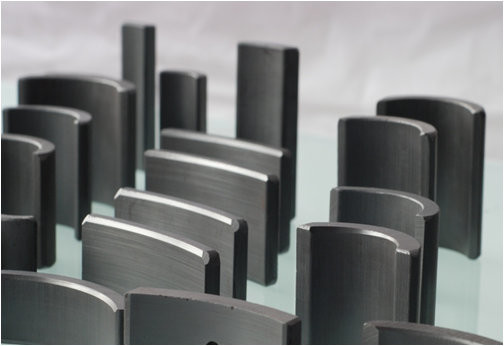

Type: MAGNET TILE.
| Description: | Y35 Ferrite Magnet Permanent Magnet |
| Material: | SrO. 6Fe2O3 |
| Product Name: | Ferrite Magnet, Ceramic Magnet |
| Working Temperature: | Grade | Temperature |
| Y10T | 250ºC |
| Y25 | 250ºC |
| Y30 | 250ºC |
| Y33 | 250ºC |
| Y35 | 250ºC |
| Y30BH | 250ºC |
| Y33BH | 250ºC |
| Magnet Shape: | Disc,Cylinder,Block,Ring,Countersunk,Segment,Trapezoid and Irregular shapes and more.Customized shapes are available |
| Features: | A low cost alternative to other magnetic materials, offers relatively high operating temperatures and good resistance to corrosion
& demagnetization. However, it has lower energy levels (Br) and is brittle in nature. |
| Applications: | Dc motors, Louderspeaks, Magnetic Separators, Automotive Sensors, Educations, etc. |
Grade:
JC-Y3932; JC-Y3939; JC-Y4041; JC-Y4127; JC-Y4231; JC-Y3744; JC-Y3849; JC-Y4240 etc...
Magnetic property
Br can reach 430 mT Hcb can reach 310 KA/m,
Hcj can reach 395 KA/m (BH)max can reach 3.6 kJ/m3
Size
Provide various dimensions of magnets according to your drawings or samples. Size of Arc magnet includes inner radius, chord length, axis height, harc height
Intelligence Honor
In October 2004, It was conferred with High-tech Product Certificate, awarded as a “High-tech Enterprises in Sichuan” by Sichuan Provincial Science and Technology Department in December 2004, and “First Price of Sichuan SME Technology Innovation Award” in December 2004. In July 2004, our new JC-Y4240 performance (equivalent to Japan’s TDK FN6B performance level) of ferrite permanent technology was identified and approved by the experts from Science and Technology Department of the Sichuan Province. The declared High Performance Ferrite Permanent Magnet (JC4545)has been listed among Key Science and Technological Program of Sichuan Province and has been given financial support. In 2007, ”Technology of manufacturing high-performance ferrite permanent magnet with YF30 pre-sintering materials ” were awarded with the tile of Outstanding Technical Achievements and Outstanding Products by the National Materials and Devices industry associations.
Please note: Our quotation for you is for your drawings which include magnetic property and size.
